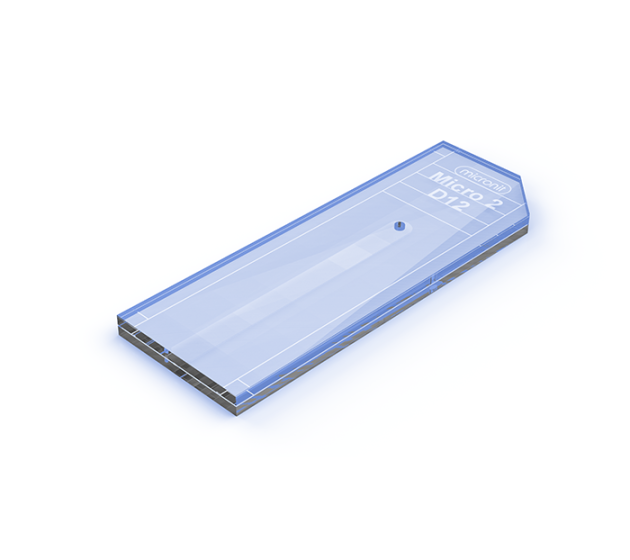

Liquid MicroSheet Nozzle - Micro 2
SKU
11003384
Availability:
check_circle In stock
$2,416.77
per pack of 10
Pack of 10 liquid nozzles chips to create a micro-liquid sheet, using a single fluid.
Micro 2 - sheets are in range 2µm to 0.6µm in thickness,
Application
These nozzles create free liquid sheets that are excellent targets for surface studies or bulk studies with soft X-rays. The sheets are flat and smooth, making them ideal targets for optical laser pumps or probes. The thickness of the sheet is on a microscale and varies along the sheet with distance from the nozzle. It is largely independent of flow rates, providing stable targets despite pump fluctuations.
Nozzle types
Micro 2 – Sheets are in the range of 2 µm to 0.6 µm in thickness, which is about twice as thick at any point compared to
| SKU | Name | Q (Typical flow rate) | Sheet Length at Q | Sheet Width at Q |
| 11003384 | Micro 2 | 3.0 ml/min | 2.7 mm | 0.46 mm |
>
Alternatives
Interfacing
Sheet and converging nozzles both use the same interfacing concept, which is not compatible with other products in the store. Micronit can connect you with a third party that can supply a compatible interfacing tool.
Publications
| Year | Titel | Author | Link |
| 2022 | Sub-micron Thick Liquid Sheets Produced by Isotropically Etched Glass Nozzles | Christopher J. Crissman et al | https://doi.org/10.1039/D1LC00757B |
| 2022 | Microfluidic liquid sheets as large-area targets for high repetition XFELs | David J. Hoffman er al | https:/doi.org/10.3389/fmolb.2022.1048932 |
| 2020 | Liquid-phase mega-electron-volt ultrafast electron diffraction | J P F Nunes et al | https://doi.org/10.1063/1.5144518 |
| 2018 | Device design and flow scaling for liquid sheet jets | Byunghang Ha et al | https://doi.org/10.1103/PhysRevFluids.3.114202 |
| Unit of measurement | pack of 10 |
|---|---|
| Interface type | Topconnect - product specific |
| Details for interfacing | This product require an interfacing tool supplied by a third party, see Product Questions for details. |
| Chip material | Borosilicate glass |
| Coating | No coating (hydrophilic) |
| Nozzle Width | 100µm |
| Jet Angle | 30 degrees |
| Nozzle type | Micro 2 |
| On chip filter | No |
| Fluids in Sheet | Single Fluid |
| Icon | Label | Description | Type | Size | Download |
|---|---|---|---|---|---|
 | 11003384 - Drawing | Technical drawing for converging sheet nozzle Micro 2 | 97 KB | Download | |
| Converging nozzles - How to use | This guide will explain how a setup using the converging nozzles can look like and how a liquid sheet can be created. | 1022 KB | Download | |
| Spec sheet - Liquid MicroSheet nozzles - Micro 2 | Specification details for the Micro 2/ Micro 2N Liquid MicroSheet nozzles. | 173.8 KB | Download |
