Liquid MicroSheet Nozzles

SKU
micro_sheet_nozzle
Availability:
check_circle In stock
As low as $2,372.98

per pack of 10

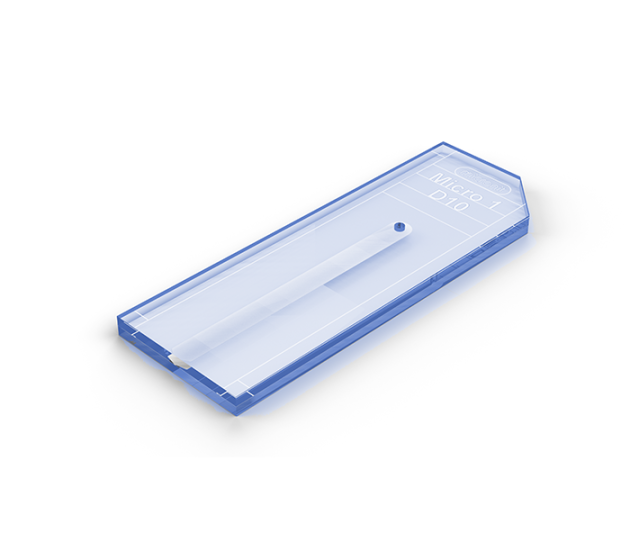

Pack of 10 liquid nozzles chips to create a micro-liquid sheet, using a single fluid
+ 0

Application
These nozzles create free liquid sheets that are excellent targets for surface studies or bulk studies with soft X-rays. The sheets are flat and smooth, making them ideal targets for optical laser pumps or probes. The thickness of the sheet is on a microscale and varies along the sheet with distance from the nozzle. It is largely independent of flow rates, providing stable targets despite pump fluctuations.

Nozzle types

  • Micro 1 - Makes the smallest sheets from arround 1 µm to 0.3 µm in thickness
  • Micro 2 - Sheets are in the range of 2 µm to 0.6 µm in thickness, which is about twice as thick at any point compared to Micro 1.
  • Micro 2N - Is a narrow version of Micro 2 which can be used when a smaller sheet width is needed. The more narrow aspect ratio is also useful for running high concentration samples in vacuum to reduce spray from sheet rims.
  • Micro 3 - Sheets are in the range of 4.5µm to 1.5µm.
  • Micro 3N - Is a narrow version of Micro 3 which can be used when a smaller sheet width is needed. The more narrow aspect ratio is also useful for running high concentration samples in vacuum to reduce spray from sheet rims.

Available products

There are currently three nozzle types available for different sheet thickness needs.

SKU Name Q (Typical flow rate) Sheet Length at Q Sheet Width at Q
11003385 Micro 1 2ml/min 2.5mm 0.40mm
11003384 Micro 2 3ml/min 2.7mm 0.46mm
11003383 Micro 2N 3ml/min 2.2mm 0.32mm
11007859 Micro 3 5ml/min 3.5mm 0.90mm
11007885 Micro 3N 5ml/min 3.2mm 0.50mm

Interfacing
Sheet and converging nozzles both use the same interfacing concept, which is not compatible with other products in the store. Micronit can connect you with a third party that can supply a compatible interfacing tool.

Publications

Year Titel Author Link
2022 Sub-micron Thick Liquid Sheets Produced by Isotropically Etched Glass Nozzles Christopher J. Crissman et al https://doi.org/10.1039/D1LC00757B
2022 Microfluidic liquid sheets as large-area targets for high repetition XFELs David J. Hoffman er al https:/doi.org/10.3389/fmolb.2022.1048932
2020 Liquid-phase mega-electron-volt ultrafast electron diffraction J P F Nunes et al https://doi.org/10.1063/1.5144518
2018 Device design and flow scaling for liquid sheet jets Byunghang Ha et al https://doi.org/10.1103/PhysRevFluids.3.114202



More Information
Unit of measurementpack of 10
Interface typeTopconnect - product specific
Details for interfacingThis product require an interfacing tool supplied by a third party, see Product Questions for details.
Chip materialBorosilicate glass
CoatingNo coating (hydrophilic)
On chip filterNo
Fluids in SheetSingle Fluid
Icon Label Description Type Size Download
pdf 11003385 - Drawing Technical drawing for Converging Sheet Nozzle Micro 1 pdf 96.3 KB Download
pdf 11003384 - Drawing Technical drawing for converging sheet nozzle Micro 2 pdf 97 KB Download
pdf 11003383 - Drawing Technical drawing for converging sheet nozzle Micro 2N pdf 95.8 KB Download
pdf Converging nozzles - How to use This guide will explain how a setup using the converging nozzles can look like and how a liquid sheet can be created. pdf 1022 KB Download
pdf 11007859 - Drawing Liquid MicroSheet Nozzle - Micro 3 Drawing for Liquid MicroSheet Nozzle - Micro 3, item 11007859 pdf 73.5 KB Download
pdf 11007885 - Drawing Liquid MicroSheet Nozzle - Micro 3N Drawing for Liquid MicroSheet Nozzle - Micro 3N, item 11007885 pdf 73.9 KB Download
pdf Spec sheet - Liquid MicroSheet nozzles - Overview Specification details for the Liquid MicroSheet nozzles product family. pdf 291.8 KB Download
pdf Spec sheet - Liquid MicroSheet nozzles - Micro 1 Specification details for the Micro 1 Liquid MicroSheet nozzles. pdf 198.7 KB Download
pdf Spec sheet - Liquid MicroSheet nozzles - Micro 2 Specification details for the Micro 2/ Micro 2N Liquid MicroSheet nozzles. pdf 173.8 KB Download
pdf Spec sheet - Liquid MicroSheet nozzles - Micro 3 Specification details for the Micro 3/ Micro 3N Liquid MicroSheet nozzles. pdf 197.7 KB Download
Customer Questions
Publication: Scientists capture the fleeting transition of water into a highly reactive state
Imaging the short-lived hydroxyl-hydronium pair in ionized liquid water, M.F. Lin et al., Science, 30 Sep 2021 (10.1126/science.abg3091)
Publication: Structure retrieval in liquid-phase electron scattering
Structure retrieval in liquid-phase electron scattering, Phys.Chem.Chem.Phys., 2021, 23, 1308
Publication: Direct observation of ultrafast hydrogen bond strengthening in liquid water
Direct observation of ultrafast hydrogen bond strengthening in liquid water. YANG, Jie, et al. Nature, 2021, 596.7873: 531-535. https://doi.org/10.1038/s41586-021-03793-9
Publication: Generation and characterization of ultrathin free-flowing liquid sheets
Generation and characterization of ultrathin free-flowing liquid sheets Koralek, J.D., Kim, J.B., Brůža, P. et al. Nat Commun 9, 1353 (2018). https://doi.org/10.1038/s41467-018-03696-w
Would a film degasser give a performance advantage?
It's recommneded to avoid the need for a film degasser, more advice can be found under "Read More".
What is the roughness of the etched structures?
Wet etched structures are extremely smooth and have a roughness in Angstrom range. The structures are fully optical transparent.
How can I interface with the sheet/converging nozzles?
You will need a interfacing tool from a third party (Neptune), see details for contact data.
