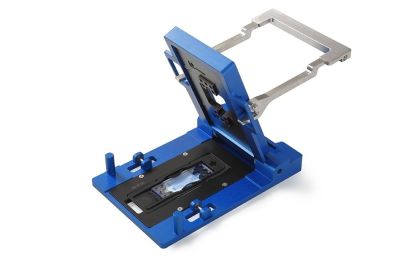

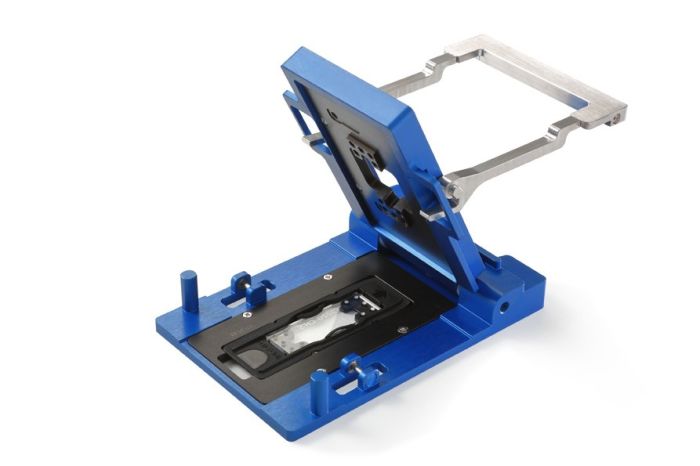

Fluidic Connect Pro chip holder - topconnect - for chips in a cartridge

SKU
11006689
Availability:
check_circle In stock
$1,714.72

per Kit

Easy interfacing for chips in a cartridge.

Fluidic Connect Pro chip holder with inserts. Ready to use all Micronit chips supplied in a black cartridge. The Load 'n' Seal design ensures tight connections without breaking your microfluidic chips. Together with the Fluidic Connect Pro Connection kit, that contains the tubing and the perfluoroelastomer ferrules, you have the best solution for all the standard microfluidic chips in the webstore.

Note: Never use ferrules from a different supplier this will cause leakage or can damage the chip.

Features and Benefits:

  • Fast, easy and robust fluidic connections
  • Future proof, thanks to replaceable inserts
  • Durable design
  • Smart sealing solutions to prevent chip cracking
  • Large chip view area possible
  • Compatible with upright and inverted microscopes



Kit contents

  • Casing
  • Fluidic Connect Pro Frame
  • Top insert (often premounted to frame)
  • Bottom insert (often premounted to frame)
  • Spare screws
  • Spacers (2x)
  • Screwdriver
  • USB stick
  • Instruction manual



More Information
Unit of measurementKit
Holder conceptFluidic Connect Pro
Holder sub-typeChips supplied in a black cartridge (most catalog chips)
Customer Questions
Can I use a ferrule from a alternative supplier, like for instance IDEX is offering, in combination with the Fluidic Connect Pro?
This will NOT work and will cause damage to the chip or holder. Our ferrules for use with the Fluidic Connect Pro are a Micronit proprietary design and also a specific grade of FFKM is used.
I have a Elveflow OB1 pressure based pump what connectors do I need?
Nuts and ferrule
Elveflow uses 1/4-28 screw in connections on there reservoirs and sensors. To interface you will need Flangeless nuts 1/4-28 for 1/16" tubing, including compatible ferrules. Those nuts and ferrules are included in Elveflows "Kit Fittings Starter Pack Push-in".
This item wil look like this:
In addition you will need our connection kit. Our Connection kit includes nuts or ferrules specificilly designed for our Fluidic Connect Pro, Fluidic Connect 4515 or side connect holders. Tubing included in "Kit Fittings Starter Pack Push-in"
The 1/16"OD PTFE tubing included in the kit has a very large ID (1/32" ~0.79mm) and is from a relatively soft material, this is not so suitable for bot our Fluidic Connect Pro and Fluidic Connect 4515 holders as there's very limited wall thickness. We recommend alternative tubing, like ETFE with a maximum of 0.5mm ID. This tubing is included in our connection kits.
Use of 1/32" OD tubing
1/32" OD tubing can be in combination with our Fluidic Connect Pro holder also be used, but need alternative ferrules.
The ElveFlow "Kit Fittings Starter Pack Push-in" doesn't include sleeves for use of 1/32" OD tubing. They are included in our Syringe to tube connection kit
Our Sideconnect our Fluidic Connect 4515 holders doens't support 1/32" tubing.
I have a Fluigent pressure based pump, what connectors do I need?
Lineup We recommend the dafault Fluigent kits (FLOW EZ™ SUPPLY KIT, FLUIWELL KIT or P-CAP KIT)
The P-cab or FLUIWELL KIT already contains 0.5m 1/16" OD FEP tubing with a ID of 500µm, when you use only limited pressures, you can try this tubing first and only order: For Fluidic Connect Pro our propriatary ferrules.  For Fluidic Connect 4515 our propriatary flatbottom nuts and ferrules.  For Sideconnect our propriatary ferrules.  For optimal performance we recommend our complete connection kit, the FEP tubing might be a bit soft limiting the pressure rating.  MFCS We recommend the dafault Fluigent kits (MFCS™-EZ HIGH/LOW PRESSURE KIT, FLUIWELL KIT or P-CAP KIT )  The P-cab or FLUIWELL KIT already contains 0.5m or 1m 1/16" OD FEP tubing with a ID of 500µm, when you use only limited pressures, you can try this tubing first and only order: For Fluidic Connect Pro our propriatary ferrules.  For Fluidic Connect 4515 our propriatary flatbottom nuts and ferrules.  For Sideconnect our propriatary ferrules.  For optimal performance we recommend our complete connection kit, the FEP tubing might be a bit soft limiting the pressure rating.
