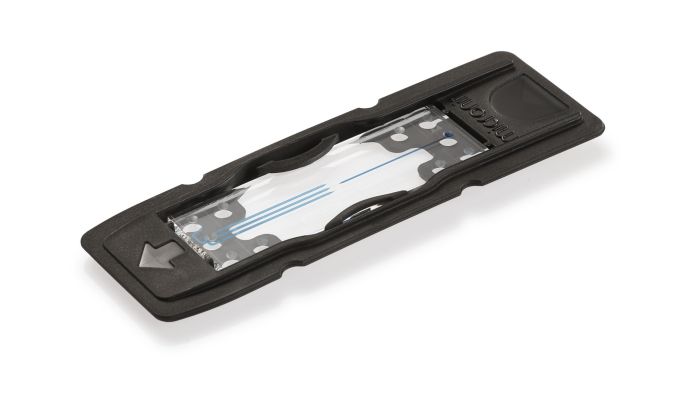

Focused flow droplet generator - nozzle 20µm - uncoated - topconnect [Beta]

SKU
11002137
Availability:
check_circle In stock
$649.46

per pack of 3

Pack of 3 focused flow droplet generator chips with a nozzle size of 20µm and without  coating (hydrophilic surface). For generation of oil-in-water droplets or emulsions. For use in combination with our topconnect interfacing.

--The characteristics of this products are not yet fully known, for that reaosn it's labled as Beta product. Performance will be in between the performance of 10µm and  50µm nozzle size--

Pack of 3 focused flow droplet generators. The channels have an oval shape and the design fetaures a nozzle with a height of 20µm and a width of 29µm which is located in the exit channel at the junction.

Nozzle location

Around the junction, the channels have a height of 33µm and a width of 38µm. The inlet/outlet channels have a height of 33µm and a width of 300m.

The design includes on-chip filters. It's recommended to also use external in-line filters.

More Information
Unit of measurementpack of 3
CoatingNo coating (hydrophilic)
Alternative item references02137, DGFF.20
Interface typeTopconnect
Chip materialBorosilicate glass
Number of inlets2
Number of outlets1
FluidsOil droplets inside a water flow (uncoated, hydrophilic surface)
Nozzle size20µm
Icon Label Description Type Size Download
pdf DGFF.10 - Drawing Drawing for 10µm Topconnect Focused Flow Droplet Generator. Items 01341 and 00935. pdf 159.2 KB Download
Customer Questions
How do I prevent clogging of my chips?
Clogging can only be avoided by working as cleanly as possible. Typical sources of particles include: - Dust from the air or open surfaces - Larger particles or other contamination in the fluids - Dried or solidified residues when re-using chips from previous runs - Components within the fluidic setup (e.g., tubing, connectors, reservoirs) - Residual particles remaining after cleaning See “Read More” for detailed advice on minimizing these risks.
What's important in selection of a suitable microscope objective?
The objective working distance is a critical parameter for selection of an objective. See "Read More" for recommendations.
Does those droplet generators work well with Emulseo surfactants and Oils?
Micronit hydrophobic coated Glass Droplet generators are tested with the combination of Emulseo FluoSurf-O™ surfactant and Emulseo FluoOil™ 7500 oil and good results are obtained.
Can I apply a hydrophobic coating myself using Emulseo Fluo-ST3™ surface treatment?
The combination of Micronit glass droplet generators and Emulseo Fluo-ST3™ surface treatment is tested and works well.
