EOR - Physical Rock Structure with vertical crack - 600µm - Hydrophobic
SKU
11003206
Availability:
check_circle In stock
$855.27
per pack of 3
Enhanced Oil Recovery - Physical Rock Structure with a 600µm wide vertical crack. Hydrophobic coated.
This porous medium chip uses our Enhanced Oil Rcecovery Physical rock structure (sandstone), combined with a vertical crack added to the model.
The models help to provide insight how such a crack or void wil influence oil recovery.

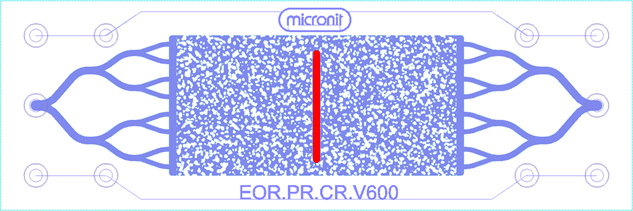

The crack is marked in red in the picture below and is a void in the actual structure.
The crack is 600µm wide and has a length of 8mm.
It's part of a series with also a 150µm and 400µm wide cracks, which can purchased separately.
A hydrophobic coating is applied to the channel surface. Please note that due to the coating method, dead zones in the chip might not be fully coated.
This model is established together with Prof. Sebastiao Lucena from the Universidade Federal do Ceará.
Unit of measurement | pack of 3 |
---|---|
Alternative item references | 03205, EOR.PR.CR.V600 |
Application | Enhanced Oil Recovery |
Interface type | Topconnect |
Chip thickness | 1.8mm |
Chip material | Borosilicate glass |
Number of inlets | 1 |
Number of outlets | 1 |
EOR network type | Physical Rock Structure (Sandstone) |
Coating | Hydrophobic coating |
Crack Width | 600µm Wide Crack |
Icon | Label | Description | Type | Size | Download |
---|---|---|---|---|---|
EOR PR 20.2 Crack 600µm | Drawing for the EOR porous medium chip with a Physical Rock Network that contains a 600µm crack. Items 03202 and 03206. | 144.3 KB | Download |
