EOR - Physical Rock Structure with vertical crack - 150µm - Hydrophobic
SKU
11003204
Availability:
check_circle In stock
$855.27
per pack of 3
Enhanced Oil Recovery - Physical Rock Structure with a 150µm wide vertical crack. Hydrophobic coated.
This porous medium chip uses our Enhanced Oil Rcecovery Physical rock structure (sandstone) combined with a vertical crack added to the model.
The models help to provide insight how such a crack or void wil influence oil recovery.

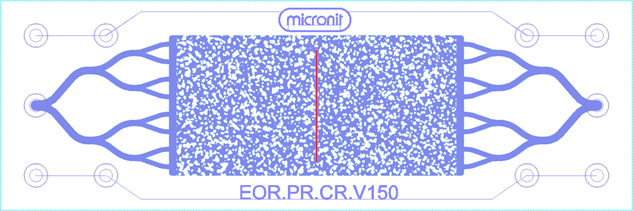

The crack is marked in red in the picture below and is a void in the actual structure.
The crack is 150µm wide and has a length of 8mm.
It's part of a series with also 400µm and 600µm wide cracks, which can purchased separately.
A hydrophobic coating is applied to the channel surface. Please note that due to the coating method, dead zones in the chip might not be fully coated.
This model is established together with Prof. Sebastiao Lucena from the Universidade Federal do Ceará.
Unit of measurement | pack of 3 |
---|---|
Alternative item references | 03204, EOR.PR.CR.V150 |
Application | Enhanced Oil Recovery |
Interface type | Topconnect |
Chip thickness | 1.8mm |
Chip material | Borosilicate glass |
Number of inlets | 1 |
Number of outlets | 1 |
Coating | Hydrophobic coating |
Crack Width | 150µm Wide Crack |
Icon | Label | Description | Type | Size | Download |
---|---|---|---|---|---|
EOR PR 20.2 Crack 150µm | Drawing for the EOR porous medium chip with a Physical Rock Network that contains a 150µm crack. Items 03200 and 03204. | 143.6 KB | Download |
