Parallel droplet generator - topconnect
SKU
parallel_ droplet
Availability:
check_circle In stock
As low as $808.91
per pack of 3

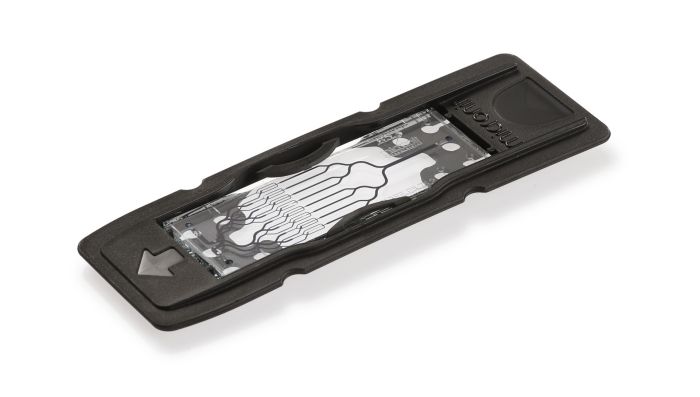

Pack of 3 parallel droplet generators with 8 nozzles, available with and without hydrophobic coating.
Looking for a way to scale up your experiment? Then replace your single droplet generator with this parallel droplet generator and increase your production rate by eight times! The chip contains eight nozzles that share mutual inlets and an outlet, so only three external connections are required.
This pack contains three parallel droplet generators with nozzles etched on both sides. The chips are similar in functionality to the
but have eight nozzles.It could be preferential to first build your setup with a single nozzle droplet generator before using the parallel droplet generator with eight nozzles. For example, if your supply of sample material is limited or expensive (eight nozzles use eight times as much sample material) or if you are trying to build an understanding of how the droplet size responds to changing parameters (one nozzle is easier to understand than eight nozzles that influence each other).
Unit of measurement | pack of 3 |
---|---|
Interface type | Topconnect |
Chip material | Borosilicate glass |
Chip thickness | 1900 µm |
Channel location | The chip consists of 3 layers, each layer contains channels |
Number of inlets | 2 |
Number of outlets | 1 |
Icon | Label | Description | Type | Size | Download |
---|---|---|---|---|---|
DGFF.P8.75 - Parallel droplet generator 75µm, 8 junctions -Drawing | 458.8 KB | Download | |||
Surface wetting properties | 220.3 KB | Download | |||
Flow rate instructions | 303.6 KB | Download | |||
How to prevent clogging | 153 KB | Download | |||
Using the right surfactants | 168.8 KB | Download |
