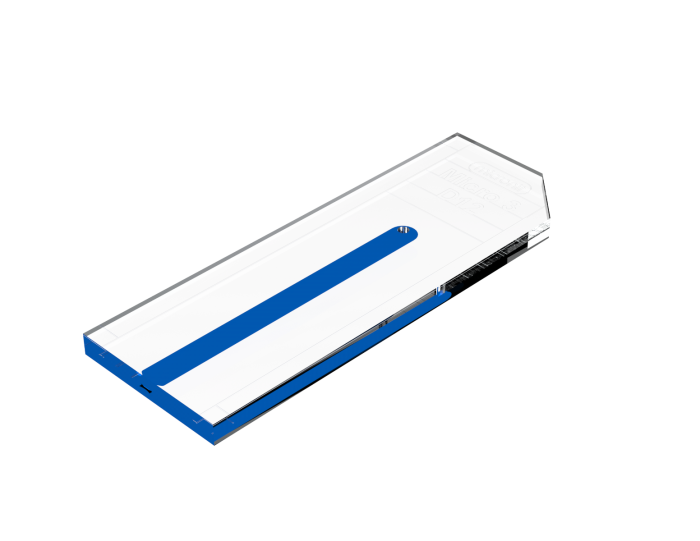

Liquid MicroSheet Nozzle - Micro 3
SKU
11007859
Availability:
check_circle In stock
$2,416.77
per pack of 10
Pack of 10 liquid nozzles chips to create a micro-liquid sheet, using a single fluid.
The Micro 3 sheet thickness is in range 4.5µm to 1.5µm.
Application
These Nozzles create free liquid sheets that are excellent tragets for surface studies or bulk studies with soft X-rays.
Sheets are flat and smooth making them excellent targets for optical laser pumps or probes
Thickness of the sheet is on the micro scale and varies allong the sheet with distance from the nozzle and is largely independent of flowrates providing stable targets despite pump fluctuations.
Nozzle type
- Micro 3 - makes sheets from arround 4.5µm to 1.5µm in thickness
| SKU | Name | Q Typical flow rate | Sheet Length at Q | Sheet Width at Q |
| 11007859 | Micro 3 | 5ml/min | 3.5mm | 0.9mm |
Alternatives
Interfacing
Sheet and converging nozzles both use the same interfacing concept, that is not compatible with other products in the store. Micronit can bring you in contact with a third party that can supply a compatible interfacing tool.
Publications
| Year | Titel | Author | Link |
| 2022 | Sub-micron Thick Liquid Sheets Produced by Isotropically Etched Glass Nozzles | Christopher J. Crissman et al | https://doi.org/10.1039/D1LC00757B |
| 2022 | Microfluidic liquid sheets as large-area targets for high repetition XFELs | David J. Hoffman er al | https:/doi.org/10.3389/fmolb.2022.1048932 |
| 2020 | Liquid-phase mega-electron-volt ultrafast electron diffraction | J P F Nunes et al | https://doi.org/10.1063/1.5144518 |
| 2018 | Device design and flow scaling for liquid sheet jets | Byunghang Ha et al | https://doi.org/10.1103/PhysRevFluids.3.114202 |
Note
This product familly was called Converging sheet nozzles first.
| Unit of measurement | pack of 10 |
|---|---|
| Interface type | Topconnect - product specific |
| Details for interfacing | This product require an interfacing tool supplied by a third party, see Product Questions for details. |
| Chip material | Borosilicate glass |
| Coating | No coating (hydrophilic) |
| Nozzle Width | 100µm |
| Jet Angle | 30 degrees |
| Nozzle type | Micro 3 |
| On chip filter | No |
| Fluids in Sheet | Single Fluid |
| Icon | Label | Description | Type | Size | Download |
|---|---|---|---|---|---|
 | 11003384 - Drawing | Technical drawing for converging sheet nozzle Micro 2 | 97 KB | Download | |
| Converging nozzles - How to use | This guide will explain how a setup using the converging nozzles can look like and how a liquid sheet can be created. | 1022 KB | Download | |
| 11003385 - Drawing | Technical drawing for Converging Sheet Nozzle Micro 1 | 96.3 KB | Download | |
| 11003383 - Drawing | Technical drawing for converging sheet nozzle Micro 2N | 95.8 KB | Download | |
| 11007859 - Drawing Liquid MicroSheet Nozzle - Micro 3 | Drawing for Liquid MicroSheet Nozzle - Micro 3, item 11007859 | 73.5 KB | Download | |
| Spec sheet - Liquid MicroSheet nozzles - Micro 3 | Specification details for the Micro 3/ Micro 3N Liquid MicroSheet nozzles. | 197.4 KB | Download |
