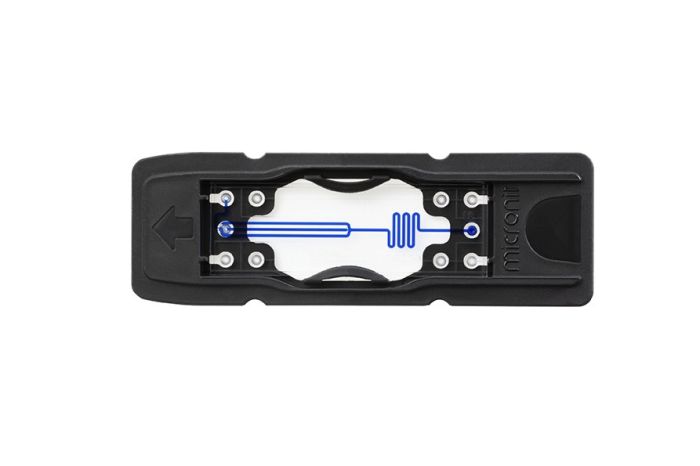

Classic focused flow droplet generator, large - Top Connect
SKU
11002890
Availability:
check_circle In stock
$570.22
per pack of 3
Classic droplet generator with a nozzle height of 50µm and channel size of 500x100µm. The channels have half semi-oval shape. In experiments reference droplets with a size >50µm where produced.
In a reference experiment oil droplets large than 50µm where produced.
The channels have a half semi-oval channel shape. The droplets produced in the reference expriment are not fully round but oval because the droplet size is larger as the channel height.
The channel height is 100µm, the channel width is 500µm.
When fully round droplets are desired, the "new generation" droplet generator is your choice.
The nozzle has a height of 50µm an has the following shape:
We recommend an alternative flow direction for our "classic" droplet generators for optimal performance:
Inlet/Outlet | Description | Arrow colour |
A - Inlet |
Continuous Phase |
Blue |
B - Inlet | Dispersed phase (droplet content) |
Green |
C - Outlet | generated emulsion | Orange |
Unit of measurement | pack of 3 |
---|---|
Alternative item references | 02890, FFDG.2.50 |
Interface type | Sideconnect |
Chip material | Borosilicate glass |
Chip thickness | 1.8mm |
Number of inlets | 2 |
Number of outlets | 1 |
Fluids | Oil droplets inside a water flow (uncoated, hydrophilic surface) |
