Focused flow droplet generator - nozzle 20µm - coated - topconnect (Beta)
SKU
11006058
Availability:
check_circle In stock
$800.17
per pack of 3

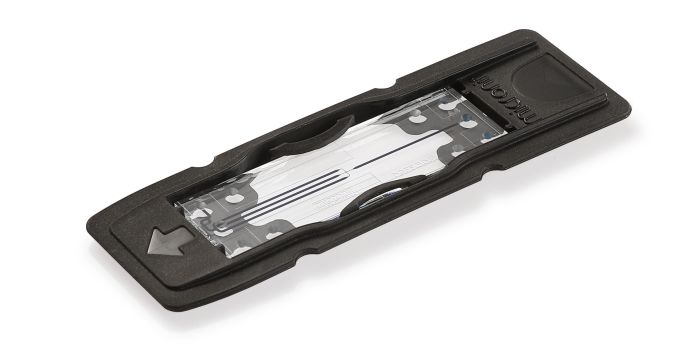

Pack of 3 focused flow droplet generator chips with a nozzle size of 20µm and hydrophobic coating. For generation of water-in-oil droplets or emulsions. For use in combination with our topconnect interfacing.
--The characteristics of this products are not yet fully known, for that reaosn it's labled as Beta product. Performance will be in between the performance of 10µm and 50µm nozzle size--
Pack of 3 focused flow droplet generators. The channels have an oval shape and the design fetaures a nozzle with a height of 20µm and a width of 29µm which is located in the exit channel at the junction.
Around the junction, the channels have a height of 33µm and a width of 38µm. The inlet/outlet channels have a height of 33µm and a width of 300µm.
This design doesn't includes on-chip filters. It's recommended to use external .
| Unit of measurement | pack of 3 |
|---|---|
| Coating | Hydrophobic coating |
| Interface type | Topconnect |
| Chip material | Borosilicate glass |
| Number of inlets | 2 |
| Number of outlets | 1 |
| Fluids | Water droplets inside an oil flow (coated, hydrophobic surface) |
| Nozzle size | 20µm |
| Icon | Label | Description | Type | Size | Download |
|---|---|---|---|---|---|
 | Droplet Generator Guide | 617 KB | Download |
