Focused flow droplet generator - nozzle 10µm - coated - topconnect
SKU
11001341
Availability:
check_circle In stock
$787.61
per pack of 3

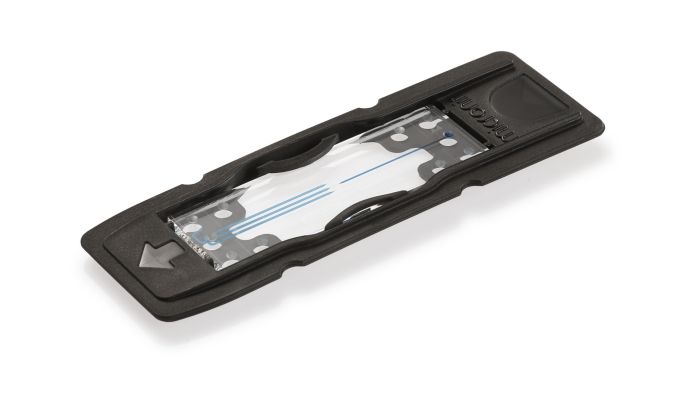

Pack of 3 hydrophobic coated focused flow droplet generator chips with a nozzle size of 10µm. For use in combination with our topconnect interfacing.
Recommended reference droplet size range: 9-20µm
For creating water-in-oil droplets.
The reference droplet size range is based on a reference experiment with Silicone oil 5cSt and DI water combined with 2% v/v Tween 20 or Tween 80.

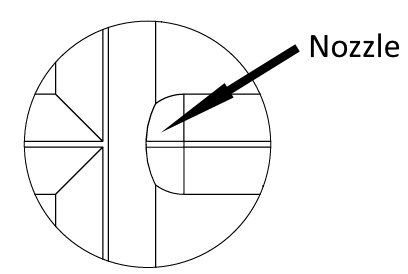

Pack of 3 hydrophobic coated focused flow droplet generators. The channels have an oval shape and the design fetaures a nozzle with a height of 10µm and a width of 14µm which is located in the exit channel at the junction.
Around the junction, the channels have a height of 17µm and a width of 216µm. The inlet/outlet channels have a height of 17µm and a width of 367µm.
The design includes on-chip filters. It's recommended to also use external .
| Unit of measurement | pack of 3 |
|---|---|
| Coating | Hydrophobic coating |
| Alternative item references | 01341, DGFF.10 |
| Interface type | Topconnect |
| Chip material | Borosilicate glass |
| Fluids | Water droplets inside an oil flow (coated, hydrophobic surface) |
| Nozzle size | 10µm |
| Icon | Label | Description | Type | Size | Download |
|---|---|---|---|---|---|
 | DGFF.10 - Drawing | Drawing for 10µm Topconnect Focused Flow Droplet Generator. Items 01341 and 00935. | 159.2 KB | Download | |
| DGFF.50 - Drawing | Drawing for 50µm Topconnect Focused Flow Droplet Generator. Items 01366 and 00877. | 179.6 KB | Download | |
| DGFF.75 - Drawing | Drawing for 75µm Topconnect Focused Flow Droplet Generator. Items 00970 and 00580. | 193.6 KB | Download | |
| Surface wetting properties | 220.3 KB | Download | ||
| Flow rate instructions | 303.6 KB | Download | ||
| How to prevent clogging | 153 KB | Download | ||
| Using the right surfactants | 168.8 KB | Download | ||
| Droplet Generator Guide | 617 KB | Download |
