Microreactor
SKU
Microreactor
Availability:
check_circle In stock
As low as $256.94
per pack of 3

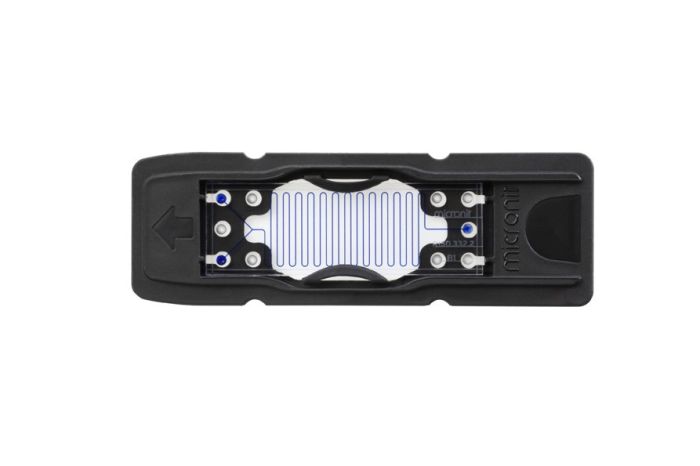

Pack of 3 microreactor chips.
Mixing and heating fluids in a microreactor gives a very high degree of control on the chemical reaction.
The following product options are available:
|
SKU |
Internal volume |
Channel width |
Channel height |
Inlet channel length |
Main channel length |
Manufacturing technique |
Thin bottom |
Coating |
| 11003694 | 0.3 | 50 | 20 | 7 | 328 | Etching | Yes | No |
| 11003644 | 0.3 | 50 | 20 | 7 | 328 | Etching | Yes | Hydrophobic |
| 11003040 | 1.86 | 140 | 45 | 7 | 343 | Etching | Yes | No |
| 11006834 | 1.86 | 140 | 45 | 7 | 343 | Etching | Yes | Hydrophobic |
| 11003033 | 15.2 | 250 | 140 | 7 | 494 | Etching | No | No |
| 11006291 | 15.2 | 250 | 140 | 7 | 494 | Etching | No | Hydrophobic |
Note that chips manufactured using powderblasting have a high channel roughness on the sides and bottom. The top face offers the best optical properties, this is the side with the inlet holes.
| Unit of measurement | pack of 3 |
|---|---|
| Interface type | Topconnect |
| Chip material | Borosilicate glass |
| Number of inlets | 2 |
| Number of outlets | 1 |
| Icon | Label | Description | Type | Size | Download |
|---|---|---|---|---|---|
 | Drawing R50.332.3 | Serpentine 20x50µm, 342mm | 79.1 KB | Download | |
| Drawing 03040 | Serpentine 45x140µm, 350mm, TB | 76.9 KB | Download | |
| Drawing 03033 | Serpentine 140x250µm, 500mm | 94.2 KB | Download |
