    • MCE chip with C4D electrodes (for eDaq platform)

    SKU
    MCE_C4D
    Availability:
    check_circle In stock
    As low as $986.93

    per pack of 2

    Microchip electrophoresis chip, with integrated electrodes for contactless conductivity detection.

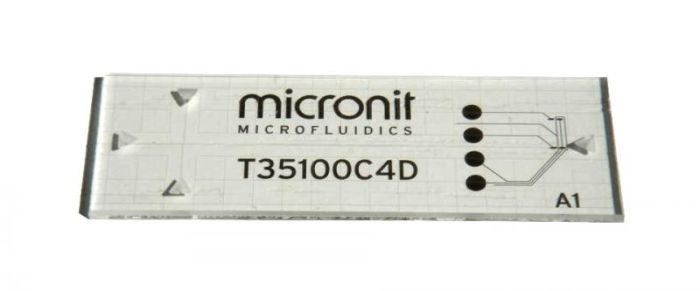

    main product photo

    Capillary electrophoresis chip with integrated on-chip electrodes. Made from chemically inert Borosilicate glass.

    The chip is available in two different types:

    Micronit Item Code eDaq reference Separation length
    [mm]    		 Chip dimensions
    [mm]
    03350 ET190-2 80 90x15
    03324 ET145-4 35 45x15
    More Information
    More Information
    Unit of measurementpack of 2
    Interface typeTopconnect - product specific
    Chip materialBorosilicate glass
    Chip thickness1200µm
    Number of inlets3
    Number of outlets1
    Channel width100
    Inlet typeDouble T inlet
    Product Questions (6)
    Customer Questions
    What is the roughness of the etched structures?
    Wet etched structures are extremely smooth and have a roughness in Angstrom range. The structures are fully optical transparent.
    Read More
    What holder should I use for the Capillary electrophoresis (CE) chips?
    For EOF holder Chips: No interfacing solution availble For MCE Chips: Edaq has a platfrom available See "Read More" for details.
    Read More
    Is there page with more details on Microchip Electrophoresis with C4D?
    Yes there is! See "More details" for a link to a Wiki Page.
    Read More
    The chips contains Electrodes: are this on-chip CE electrodes?
    No, the chip only contains electrodes for contact conductivity detection. The electrodes for CE are part of the holder.
    Read More
    What is C4D and how does it work?
    C4D is an abbreviation for Capacitively-Coupled Contactless Conductivity Detection, it uses a transmitter electrode to subject a sample region to a large amplitude, high frequency electromagnetic signal. A corresponding, attenuated, AC signal registers at a receiver electrode. See "Read More" for details.
    Read More
    Where are the C4D electrodes located?
    The electrodes for C4D are located on the top surface of the chip, where also the inlet holes are located. There’s no direct liquid contact. The glass thickness between the electrodes and the channel is about 100 µm. See "Read More" for details.
    Read More
