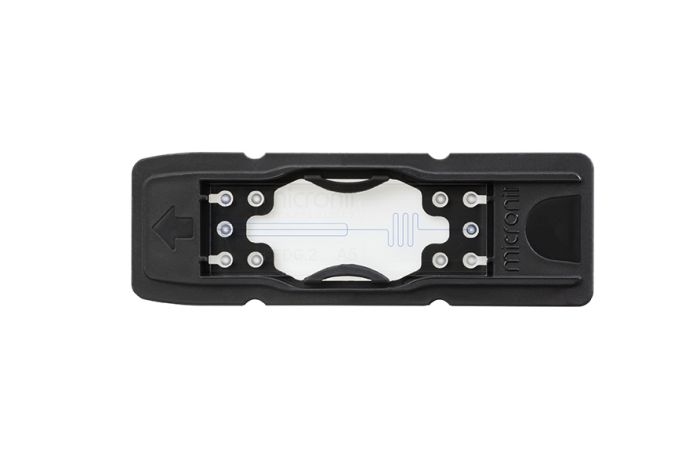

Classic Coated focused flow droplet generator, small - Top Connect
SKU
11002892
Availability:
check_circle In stock
$704.39
per pack of 3
Classic coated droplet generator with a nozzle height of 10µm and channel size of 100x20µm. The channels have half semi-oval shape. In experiments reference droplets with a size <60µm and >10µm where produced. This version should be used for water droplets inside a oil flow.
This version features a hydrophilic coating, to create water droplets inside a oil flow. In a reference experiment water droplets where produced with a size small than 60µm an large than 10µm.
The channels have a half semi-oval channel shape. The droplets produced in the reference expriment are not fully round but oval because the droplet size is larger as the channel height.
The channel height is 20µm
When fully round droplets are desired, the "new generation" droplet generator is your choice.
The nozzle has a height of 10µm an has the following shape:
We recommend an alternative flow direction for our "classic" droplet generators for optimal performance:
Inlet/Outlet | Description | Arrow colour |
A - Inlet |
Continuous Phase |
Blue |
B - Inlet | Dispersed phase (droplet content) |
Green |
C - Outlet | generated emulsion | Orange |
Unit of measurement | pack of 3 |
---|---|
Alternative item references | 02892, FFDG.2 |
Interface type | Topconnect |
Chip material | Borosilicate glass |
Fluids | Water droplets inside an oil flow (coated, hydrophobic surface) |
