    • Adjustable length insert set for Fluidic Connect Pro, 15mm chip width

    SKU
    11006696
    Availability:
    check_circle In stock
    $511.69

    per Kit

    Insert for 10-hole chip layout and 15mm width. Adjustable length (per 5mm).

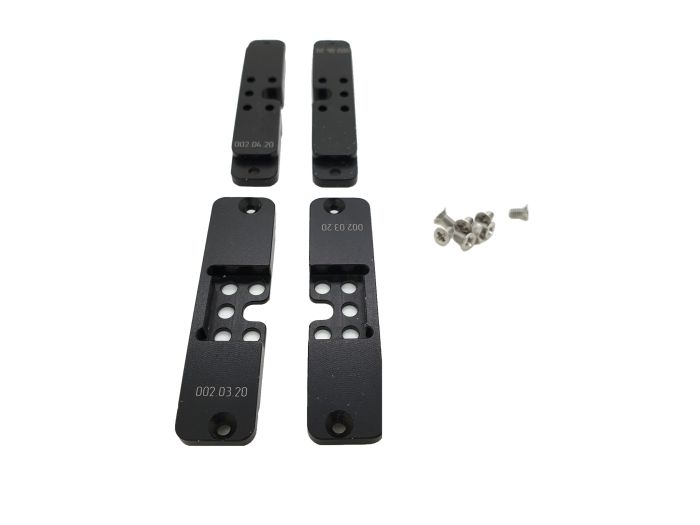

    main product photo

    This insert set can be mounted on different positions, 5mm distance between positions, to create an interfacing for chips of different lengths. It can also be used for our catalogue chips supplied in cartridges, however in this case the cartridge needs to be removed.

    Chip width Number of inlet holes Minimal chip length Maximum chip length
    15mm 5 on each side 20mm 90mm

                  10 hole chip layout

    More Information
    Unit of measurementKit
    Holder conceptFluidic Connect Pro
    Holder sub-typeAdjustable length, 15mm width
    Compatible tubing outside diameter(s)1/32", 1/16"
    Customer Questions
    When should I use the metal strips (spacers) as provided with the Fluidic Connect Pro holder?
    When should I use the spacers?
    The metal strips are used for thin bottom chips and are also part of the holder for resealable flow cell's.
    This are currently the following products (list might be incomplete): SKU SKU old Description Note 11000746 00746 Fluidic Connect Pro for resealable flow cells Normally already pre-assembled  11000746 00745 Insert set for resealable flow cells   11003133 03133 Thin bottom flow cell    11106327 03133-F Thin bottom flow cell - coated   11003196 03196 Thin bottom flow cell - 0.5mm   11006345 03196-F Thin bottom flow cell - 0.5mm - coated   11003164 03164 Thin bottom flow cell - 1.5mm   11006338 03164-F Thin bottom flow cell - 1.5mm - coated   11003694 FC_R50.332.3_PACK Serpentine channel / Microreactor, 20x50µm, 342mm length   11003644 FC_R50.332.3-F Serpentine channel / Microreactor, 20x50µm, 342mm length - Coated   11003040 03040 Serpentine channel / Microreactor, 45x140µm, 350mm length     11006834 03040 - F Serpentine channel / Microreactor, 45x140µm, 350mm length - coated   11006722 FC_X3550CH.3_PACK Cross channel chip - thin bottom   How to apply the spacers? The spacers are placed beneath the top insert, as shown in the picture below. What should I do when I don't have spacers available?
    Just contact us to request new spacers.
    Read More
